300 Mbps 802.11n cloud-managed access point with passive and 802.3af PoE support, dual Ethernet ports and dual internal antennas.
High power. Tiny footprint.
The OM2P-HS 802.11n wireless mesh access point is ideally suited for providing robust internet coverage just about anywhere you need to share a connection. Examples include hotels, apartments, neighborhoods, coffee shops, shopping malls, campgrounds, and marinas.
For version 2, we've improved the OM2P-HS with the following features:
1. Dual PoE Support: Use either passive 12-24v PoE or standard 802.3af PoE as used in PoE switches.
2. High power: Doubled power to 23 dBm (200 mW) from 20 dBm (100 mW).
With 23 dBm power (200 mW) at even the highest speeds (5-8 dBi higher than most business class access points) and dual receive amplifiers, the OM2P-HS boosts incoming signals to provide exceptional range at twice the speed of the original OM2P. Since its dual antennas are internal (same 2 dBi gain as the OM2P), it fits into housings the OM2P can't, like the Ceiling and Ethernet Wall Jack enclosures. Even the outdoor enclosure is a cleaner, more sealed installation as the antenna doesn't protrude outside the housing.
The OM2P-HS is compatible with both passive 12-24v PoE and standard 802.3af PoE, so these access points can be powered with either Open Mesh's line of passive PoE injectors or standard PoE switches.
Compatible with Open Mesh’s line of modular enclosures for easy installations indoors and out.
Includes a license for CloudTrax, Open Mesh’s cloud-based network controller. Manage unlimited APs and networks with a few clicks - nothing to install on-site.
See what's happening on your network with application reporting at the network edge.
With device fingerprinting, you'll know who is on your network in terms of device operating system, name, bandwidth used and more.
Mesh technology enables access points to work together to form a self-organizing, self-healing wireless network.
From CloudTrax to hardware, brand the Open Mesh solution as your own. Learn more.
Support for 802.3af PoE and 12-24v passive PoE to power your access points up to 300 feet away over a single Ethernet cable.
Multiple SSIDs allow you to broadcast up to four unique networks, some as public hotspots and others private.
Custom-branded splash pages automatically scale to fit any device, or use Facebook Wi-Fi to let users check-in to your page before using the web for free.
Automated outage alerts by email if any access point goes down and doesn’t come back up within an hour.
Authenticate users with WPA2 or WPA-Enterprise security; charge for access, use vouchers and connect to your hotel PMS system.*
Set upload and download caps on each user and block individual devices to ensure there is enough bandwidth available for everyone.
Built-in firewall prevents users on the public network from seeing each other or your wired network by default.
Build, manage and monitor your networks with free iOS and Android apps. No PC required.
|BEST USE||General WiFi in uncongested environments|
|SPEED (RATED)||300 Mbps|
|ANTENNA||Two Internal 2x2 (2.4 GHz)|
|POWER CONSUMPTION (APPROXIMATE)||4W idle, 7W normal load, 10W heavy load|
|RANGE (APPROXIMATE)||75-150' indoor (3-4 walls) 400'-500' outdoor|
|PROCESSOR||520 MHz QCA9341 MIPS 74K|
|MAX USERS (RECOMMENDED)||20-50 per AP|
|MAX REAL PER-USER SPEED||95 Mbps|
|WLAN STANDARD||802.11g/n 2.4 GHz|
|HARDWARE WATCHDOG CPU||Yes|
|FREE CLOUD MANAGEMENT||Yes|
|SELF-FORMING, SELF-HEALING MESH||Yes|
|POE||Standard 802.3af and 12-24v Passive|
|LEDS||Power, Ethernet (2), WiFi|
|FREE IOS/ANDROID APPS||Yes|
|CAPTIVE PORTAL W/ BANDWIDTH THROTTLING||Yes|
|SSID TO VLAN TAGGING||Yes|
|ETHERNET (WAN AND LAN)||2 x 100Mbps|
|POWER SUPPLY OPTIONS||Universal (US/EU/UK/AU); US 12V 1A (bundled w/ wallplug enclosure)|
|RECOMMENDED ENCLOSURE||All OM enclosures|
|SIZE||3.75" x 2.75" x 1"|
|CERTIFICATIONS||FCC (US), IC (Canada), CE (Europe), RCM (Australia, New Zealand)|

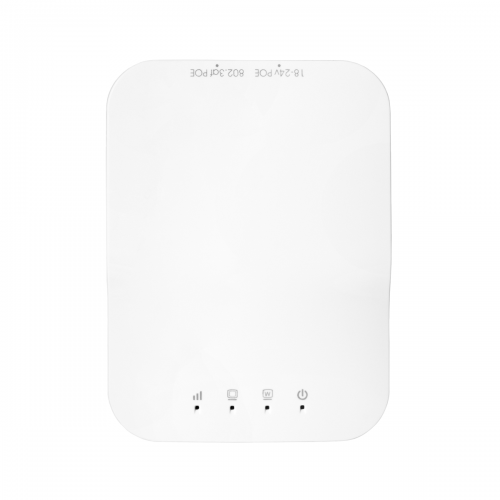

OM2P-HS 300 Mbps Access Point
- Brand: Open-Mesh
- Product Code: OM2P-HS
- Availability: Out Of Stock
